BRANCH PIPE & NOZZLES (as per is:903)
BRANCH PIPE & NOZZLES
Technical Specification:
| Product Code No. | Description | Inlet Size's | Outlet's | Outlet's |
|---|---|---|---|---|

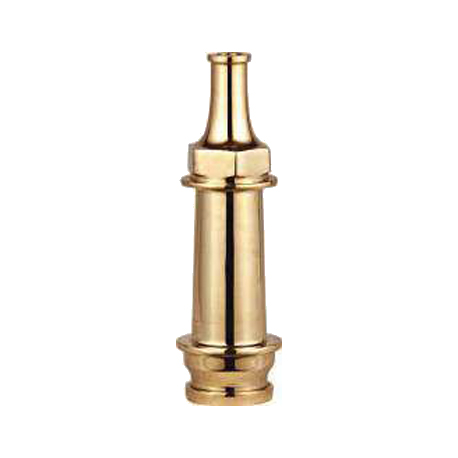

| SB-04 | Size - 2½" (63mm) | 63mm Male Instantaneous. | Solid Jet Nozzle 20mm | • LTB-2 Gun Metal- IS :318 • Stainless Steel IS : 3444 • Aluminium IS :617 • Conforming Specification IS : 903 |
Material of Construction
Body : Gun Metal or Stainless Steel or Aluminium.
Size of Nozzle : 6mm, 12mm, 15mm, 25mm
Other Range : 38mm and 52mm
Performance Test :
- Hydrostatic (Body) : Tested at 21 Kgf/c m2 for 2½ min.
Technical Specification
| Product Code No. | Description | Inlet Size's | Type | Material of Construction | Performance (Test) |
|---|---|---|---|---|---|
| TPB-05 TRIPLE PURPOSE | 2½" (63mm) Male Instantaneous | 2½" (63mm) Male Instantaneous. | Jet - Spray Shut Off. | • LTB-2 Gun Meta-l IS :318 • Stainless Steel IS : 3444 |
Hydrostatic (Body) : Tested at 21 Kgf /cm 2 for 2½ mins. |
| NTB-06 NAVY TYPE | 2½" (63mm) Male Instantaneous | 2½" (63mm) Male Instantaneous. | Jet - Spray Shut Off. | • LTB-2 Gun Metal- IS :318 | Hydrostatic (Body) : Tested at Kgf/cm2 for 2½ mins. |
| FN-07 FOG NOZZLE | 2½" (63mm) Male Instantaneous | 2½" (63mm) Male Instantaneous. | Jet - Spray Shut Off. | • LTB-2 Gun Metal- IS :318 | Hydrostatic (Body) : Tested at 21 Kgf /cm 2 for 2½ mins. |

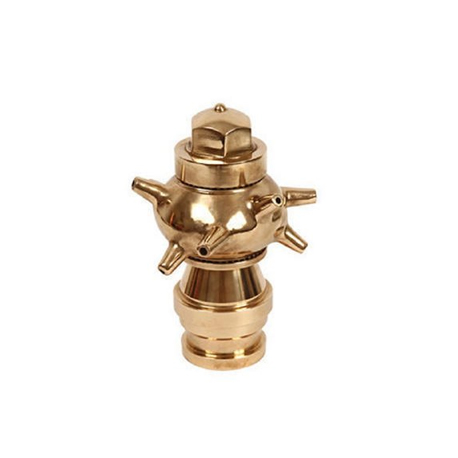

| RT-08 REVOLVING TYPE | 2½" (63mm) Male Instantaneous Inlet | 2½" (63mm) Male Instantaneous. | Revolving Type | • LTB-2 Gun Metal- IS :318 | Hydrostatic (Body) : Tested at 21 Kgf/cm 2 for 2½ mins. |
| HC-09 HAND CONTROLLED | 2½" (63mm) Male Instantaneous Inlet | 2½" (63mm) Male Instantaneous. | Jet - Spray Shut Off. | • Aluminium- IS :617 | Hydrostatic (Body) : Tested at 21 Kgf/cm 2 for 2½ mins. |
| WCN-010 WATER CURTAIN NOZZLE | 2½" (63mm) Male Instantaneous Inlet | 2½" (63mm) Male Instantaneous or Threaded Inlet | Curtain Nozzle | • Stainless Steel IS : 3444 • Aluminium IS : 617 | Operating Pressure : 11 Kgf/cm2 Max. |
| FAN-011 FAST ACTION NOZZLE | 2½" (63mm) Male Instantaneous Inlet | 2½" (63mm) Male Instantaneous. | Straight Stream to wide fog and flush without shut off. | Durable Light Hard anodized construction | Flow Rate 570 LPM discharge at 7Kgf/cm2 |
| MN-012 MULTIPURPOSE NOZZLE | 2½" (63mm) Male Instantaneous Inlet | 2½" (63mm) Male Instantaneous. | Straight Stream to Dense fog and flush without shut off. | Durable Light Hard anodized construction | Flow Rate Solid - Jet 350 LPM discharge at 7Kgf/cm2 Flow Rate Fog 300 LPM discharge at 7Kgf/cm2 Flow Rate Jet + Fog 600 LPM discharge at 7Kgf/cm2 |
