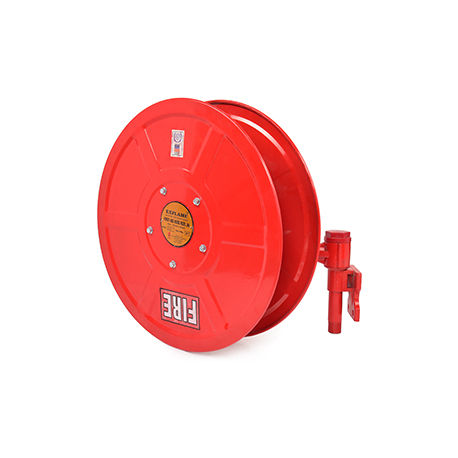

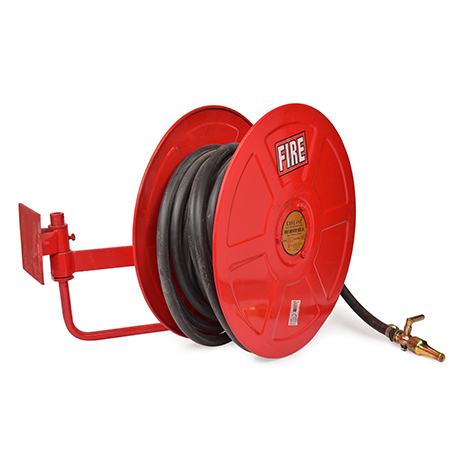

FIRST AID HOSE REEL

Performance Test :
  • Hydrostatic (Body) : Tested at 21 Kgf/cm2
  • Flow Test : 24 LPM Discharge at 7 Kg f/cm2
  • Range (Jet Length) : 6 Mtr.


Technical Specification:
Product Code No. Description Type Outlet Size's Material of Construction
HR-018 First Aid Hose Reel ISl:884 Size Inlet 20mm (¾" BSP Thread Size) Swinging Type 180° Wall Mounting. Outlet Inlet 20mm First Aid Hose Reel IS:884 • Hub Sides & Wall Bracket- M.S. Sheet- IS: 513.
• Swivel Joint- Gun Metal (LTB-2) - IS: 318.
• Pipe with Fitting - M.S. - IS: 1239.
• Side plate Dia: 500mm.
• Made of High quality Mild Steel PainVPowder Coating in Red colour.
Hose Reel Tube :
• Hose Reel Tube Rubber Hose - IS: 444, Type-II.
• Hose Pipe Thermoplastic IS: 12585, Type-I/ Type-II, Red/Black Colour.
Shut Off Nozzle :
• G M Shut Off Nozzle As Per IS: 8090, Jet Spray & Shut Off type.
• Confirming Specification: IS: 884.
HR-019 First Aid Hose Reel COMPACT TYPE Size Inlet 20mm / 25mm (¾" / 1") Swinging Type 180° Wall Mounting. Outlet Inlet 19mm / 20mm 25mm First Aid Hose Reel Compact Type: • Hub Sides & Wall Bracket- M.S. Sheet- IS: 513.
• Pipe with Fitting - M.S. - IS: 1239.
• Side plate Dia: 560mm.
• Made of High quality Mild Steel Powder Coating in Red colour.
Hose Reel Tube: • Hose Pipe Thermoplastic IS: 12585, Type-I/ Type-II, Red/Black Colour.
• Hose Normal Bore ID: 20mm, 25mm.
• Other Range of Hose Length: 20/25/36/ 40 mtrs.
Shut Off Nozzle: • Shut off Nozzle: G M- Jet Spray & Shut Off type / PVC- Jet Spray type.
HR-020 First Aid Hose Reel METRO PROJECT Size Inlet 25mm (1") Swinging Type 180° Wall Mounting. Outlet Inlet 25mm First Aid Hose Reel Metro Project : • Hub Sides & Wall Bracket- M.S. Sheet- IS: 513.
• Pipe with Fitting- M.S. IS: 1239.
• Side plate Dia: 560mm.
• Made of High quality Mild Steel PainVPowder Coating in Red colour.
Hose Reel Tube : • Hose Reel Tube Rubber Hose - IS: 444, Type-II.
• Hose Pipe Thermoplastic IS: 12585, Type-I/ Type-II, Red/Black Colour.
• Hose Normal Bore ID: 25mm.
• Other Range of Hose Length: 36/ 45 mtrs.
Shut Off Nozzle : • Shut off Nozzle: G M Jet Spray & Shut Off type / PVC- Jet Spray type.
