SUCTION COLLECTING HEAD (as per is:926-1985)
SUCTION COLLECTING HEAD
Technical Specification:
| Product Code No. | Description | Material of Construction | Working Pressure Kgf/cm2 | Hydrostatic test Pressure Kgf/cm2 | Inlet Size | Outlet Size |
|---|---|---|---|---|---|---|

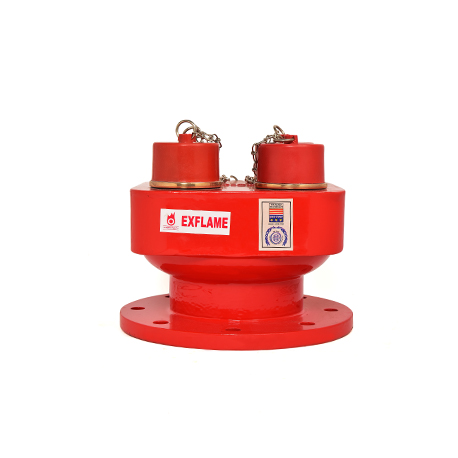

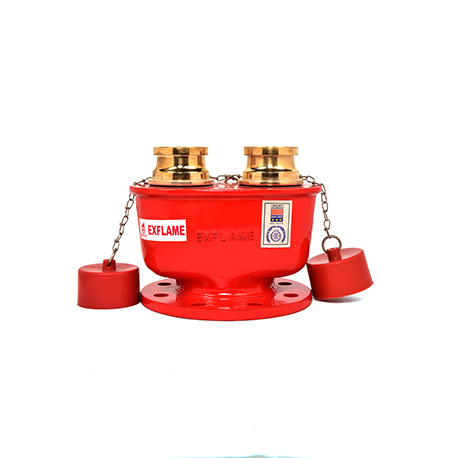

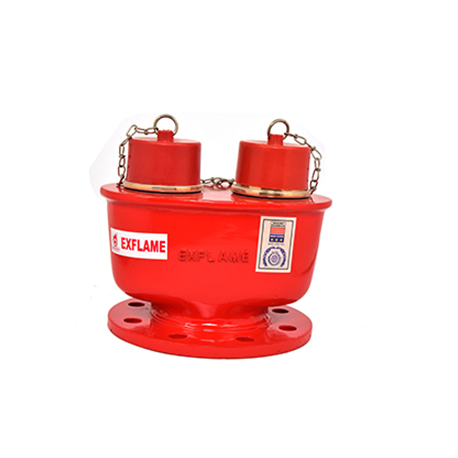

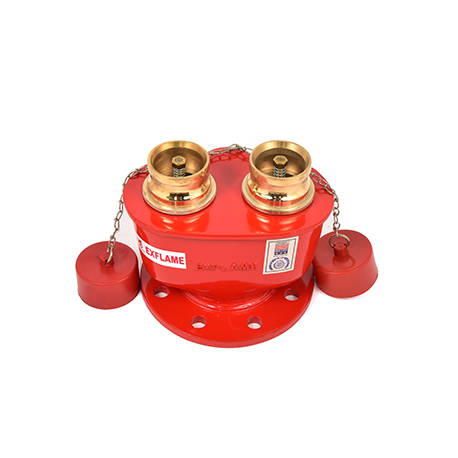

| SCH-024 2-Way Suction Collecting Head |
2½" (63mm) | Body - Cast Iron Working part - GM & SS |
10 | 21 | 2½" (63mm) Two Instantaneous Male Coupling with NRV (GM/SS) | 100mm |

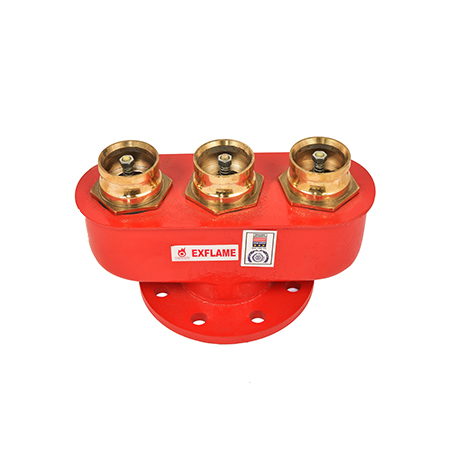

| SCH-025 3-Way Suction Collecting Head |
2½" (63mm) | Body - Cast Iron Working part - GM & SS |
10 | 21 | 2½" (63mm) Three Instantaneous Male Coupling with NRV (GM/SS) | 100mm |

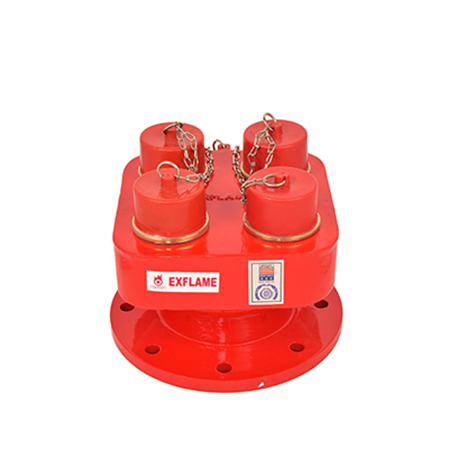

| SCH-026 4-Way Suction Collecting Head |
2½" (63mm) | Body - Cast Iron Working part - GM & SS |
10 | 21 | 2½" (63mm) Four Instantaneous Male Coupling with NRV (GM/SS) | 150mm |
