Water & Foam Monitors / Nozzles

Product Code No.	Description	Material of Construction	Hydrostatic test Pressure kgf/cm²	Flow Test Lpm	Range mtr	Rotation	Nozzle MOC

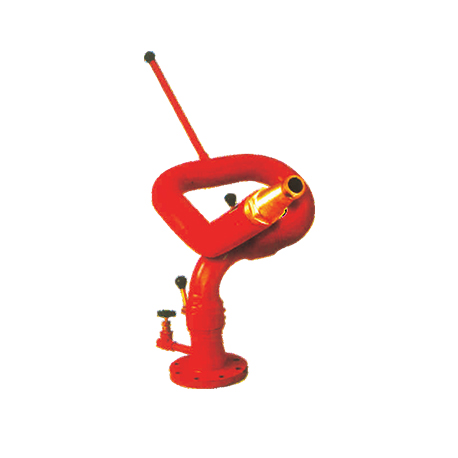

WM-038 Stand Post Water Jet Monitor	Size 2½" (63mm) male Instantaneous	Seamless Steel Tubes	21	1750 LPM discharge at 7kgf/cm²	Vertical 21 mtr. Horizontal 53 mtr.	Vertical: 125min.(80 Upward and 45 Downward). Horizontal: 360deg in either direction.	∙ Gun Metal ∙ S.S. ∙ Aluminium Alloy (Solid Jet Nozzle)

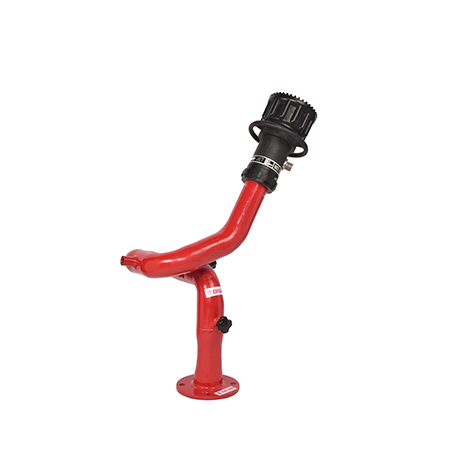

WM-039 Long Range Water Foam Monitor	Size 2½" (63mm) / 3" (75mm) male Instantaneous	∙ Seamless Steel Tubes ∙ Aqua-foam Nozzle with S.S/PVC Pick Up tube	21	1750 LPM discharge at 7kgf/cm²	Vertical 21 mtr. Horizontal 53 mtr.	Vertical: 125min.(80 Upward and 45 Downward). Horizontal: 360deg in either direction.	∙ Gun Metal ∙ S.S. ∙ Aluminium Alloy (Jet SPray Nozzle)

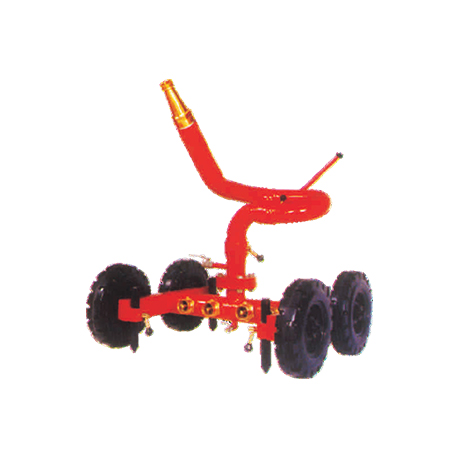

WM-040 Trolley Mounted Monitor	Size 2½" (63mm) male Instantaneous	∙ Seamless Steel Tubes ∙ Solid Rubber Two/Four Wheels	21	1750 LPM discharge at 7kgf/cm²	Vertical 21 mtr. Horizontal 53 mtr.	Vertical: 125min.(80 Upward and 45 Downward). Horizontal: 360deg in either direction.	∙ Gun Metal ∙ S.S. ∙ Aluminium Alloy (Jet SPray Nozzle)
