Landing Valves (as per is:5290)
A N EXFLAME is one of the Landing Valve Manufacturer & Supplier in India. A N EXFLAME FIRE PROTECTION PVT. LTD. an ISO 9001, 14000, 45001:2018 Certified Company, A complete range of Landing Valve and their accessories under the brand name "EXFLAME" with BIS (ISI, ISO, CE, MSME, NSIC certifications) strictly in accordance with relevant Indian standards. In addition to this, we
also customize products according to the client specifications.

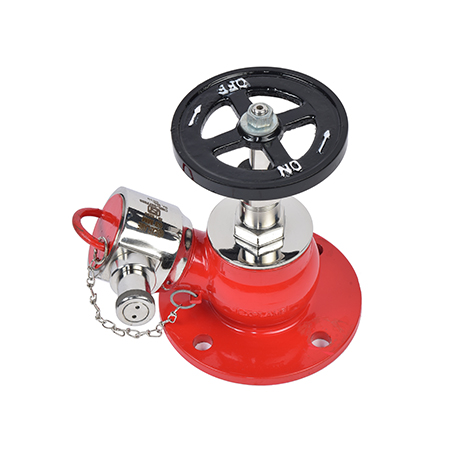

Single Outlet (Type 'A') ISI Marked
Size : Inlet 75 / 80mm with 63mm size one no. female outlet instantaneous coupling with pull out type lugs
Material :
- LTB-2 of IS:318, stainless steel SS-IS:3444 and aluminium IS:617 Comforming Specification : IS 5290
Performance Test :
- Hydrostatic (Body Test) : Tested at 21 Kgf/cm2
- Water Tightness (Seat Test) : Tested at 14 Kgf/cm2
- Flow Test : 900 LPM discharge at 7 Kgf/cm2

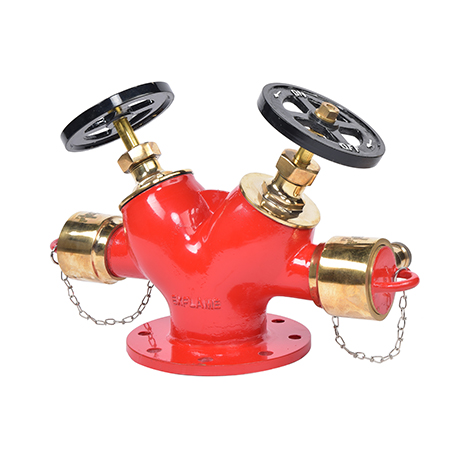

Double Outlet (Type 'B') ISI Marked
Size : Inlet 100mm with 63mm size two nos. female outlet instantaneous coupling with pull out type lugs
Material :
- LTB-2 of IS:318 and stainless steel SS-IS:3444 Comforming Specification : IS 5290
Performance Test :
- Hydrostatic (Body Test) : Tested at 21 Kgf/cm2
- Water Tightness (Seat Test) : Tested at 14 Kgf/cm2
- Flow Test : 1800 LPM discharge at 7 Kgf/cm2
Technical Specification
| Product Code No. | Description | Inlet Size | Outlet Size | Material of Construction |
|---|---|---|---|---|
| LV-01 | Size - 2½" (63mm) | 75mm | 2½" (63mm) | • LTB-2 Gun Meta-l IS :318 • Stainless Steel IS : 3444 • Aluminium IS : 617 • Conforming Specification IS:5290 |
| LV-02 | Size - 2½" (63mm) | 100mm | 2½" (63mm) | • LTB-2 Gun Meta-l IS :318 • Stainless Steel IS : 3444 • Conforming Specification IS:5290 |
