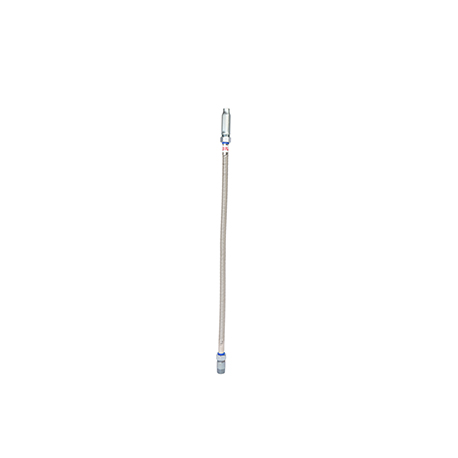

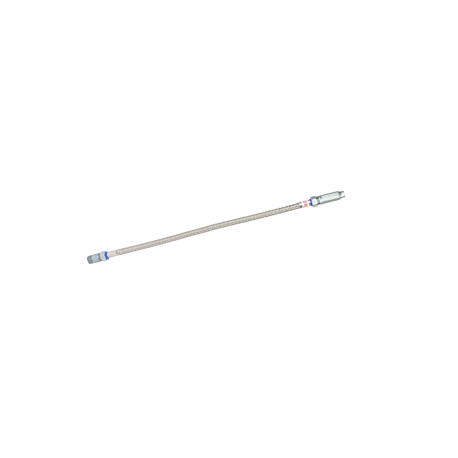

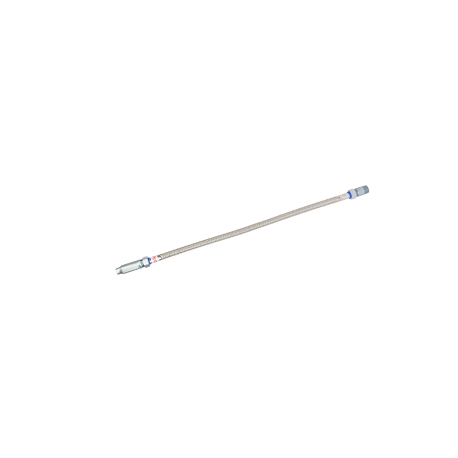

FLEXIBLE HOSE SPRINKLER

EXFLAME Flexible Hose Sprinklers are Stainless steel flexible hoses, which enable fast installation, simple reolocation, as well as an easy retro-fitting of Sprinklers. These flexible hoses are contractor-friendly and have the required brackets and connections for attaching sprinkler head of choice. EXFLAME Flexible Hose Sprinklers are available in four sizes with the option of braided and unbraided stainless steel hoses. The complete unit consists of a corrugated stainless steel flexible hose with nipple, reducer and bar.

Technical Specification:
Product Code No. Description Techinal Specification
FHS-077
Flexible Hose Sprinkler
  • Available Product length and type
  • Available Square bar length
  • Maximum working pressure
  • Maximum ambient temperature
  • Minimum installation Bending Radius
  • Bending Angles(Flow Direction)
  • Largest K factor for 1/2" outlet
  • Intended use
  • 700mm to 1800 (28" to 70")
  • 700mm to 1500 (28" to 59")
  • 14kgf/cm2 (200psi)
  • 107 degree celsius (225 degree fahrenheit)
  • 75mm(3")
  • Up to 180 degreee
  • 5.6 [GPM/(psi)/1/2]
  • Wet system and dry system
