Water/Mechanical Foam (Stored Pressure) (PORTABLE TYPE) (CONFoRMING TO IS:15683:2018)

  2. Product
  3. Water/Mechanical Foam (Stored Pressure)

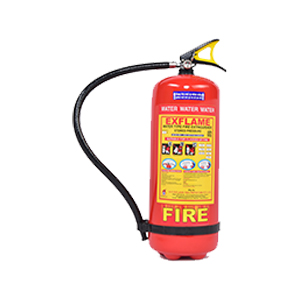

W/SP-052

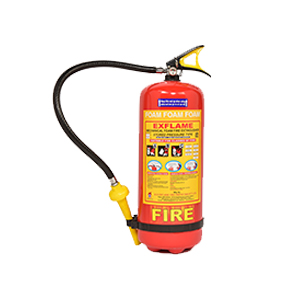

MF/SP-053



Technical Specification
Product Code No. W/SP-052 MF/SP-053
Description Capacity (Kg) Water Type 9 Ltr Mechanical Foam Type 9 Ltr
Type of Fire A Class A & B Class
Type of Extinguisher Stored Pressure Stored Pressure
Type of Extinguishing Media Soft Water Mechanical Foam (AFFF IS:4989)
Expellent Dry N2 Gas Dry N2 Gas
Min. Effective Discharge(%) 95 95
Min. Jet Length(mtr) 3 3
Discharge Time (sec.) 15-20 15-20
Working Pressure (Kgf/cm2) 15 15
Hydraulic test Pressure(Kgf/cm2) 35 35
Bursting Pressure (Kgf/cm2) 55 55
Operating Position Upright Upright
Operating Valve Squezze Grip Type with Discharge Hose and Nozzle Squezze Grip Type with Discharge Hose and Nozzle
Fire Rating 3A 3A, 89B
Temperature (deg C) 5°c + 60°c 5°c + 60°c
Note: Also Available in (AFFF) UL listed
Application:
CLASS A FIRE: Wood, Textiles, Paper, Cloths, Cotton Mill, Jute Mill etc.
CLASS B FIRE: Petroleum, Oil, Diesel, Paint, Varnish, Solvent, Aviation Fuel, Flammable and Volatile Liquid etc.
CLASS C FIRE: Flammable Gases Live Electrical Equipments, Industrial Gases, Electrical Installation, Power Grid and Computer Room etc.
